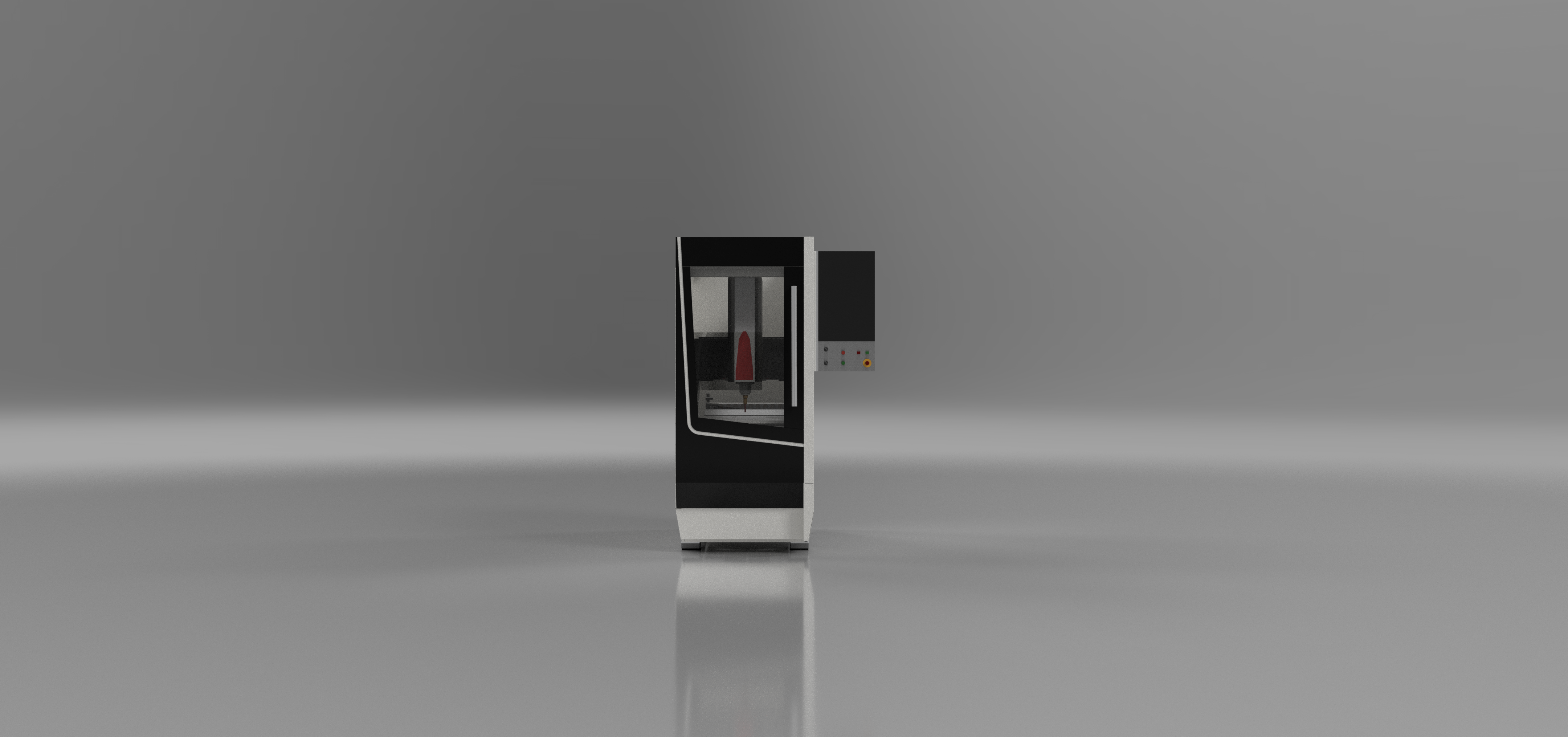

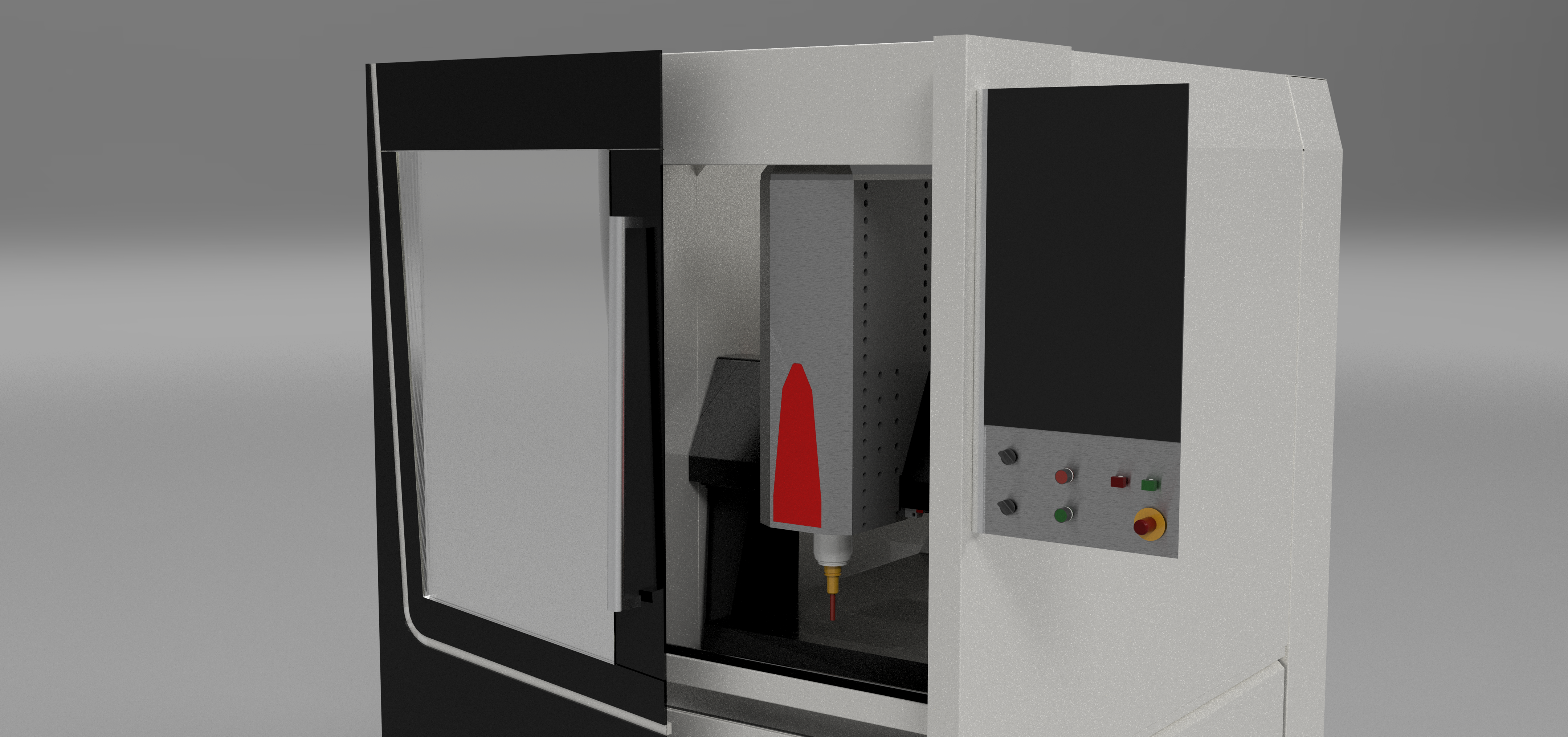

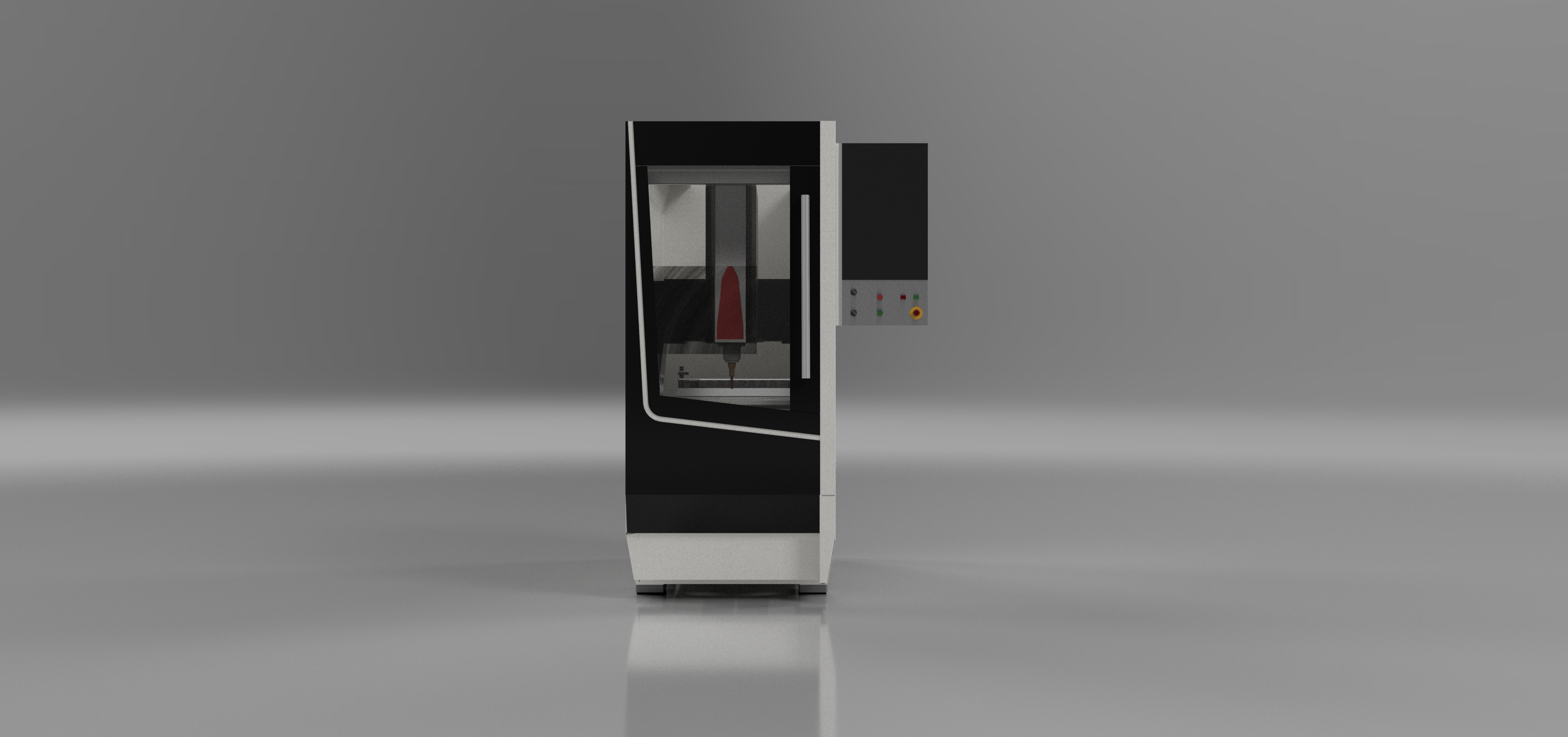

Mini High Speed Milling Machines
Highest performance and productivity
- High speed milling
- Small foot-print
- Versatility
- User friendly interface
Max. X travels — 800 mm
Max. Y travels — 600 mm
- Integrated FANUC controller and servomotors
- Two software options – professional industrial FANUC software and easy to use customised software
- Easy operation of the machine even for CNC operators with no experience
- 21″ industrial touchscreen
Vacuum is an option for Mini Ikon Machines
Vacuum pumps is up to 25 cmh with rotary-vane technology
HIGHLIGHTS

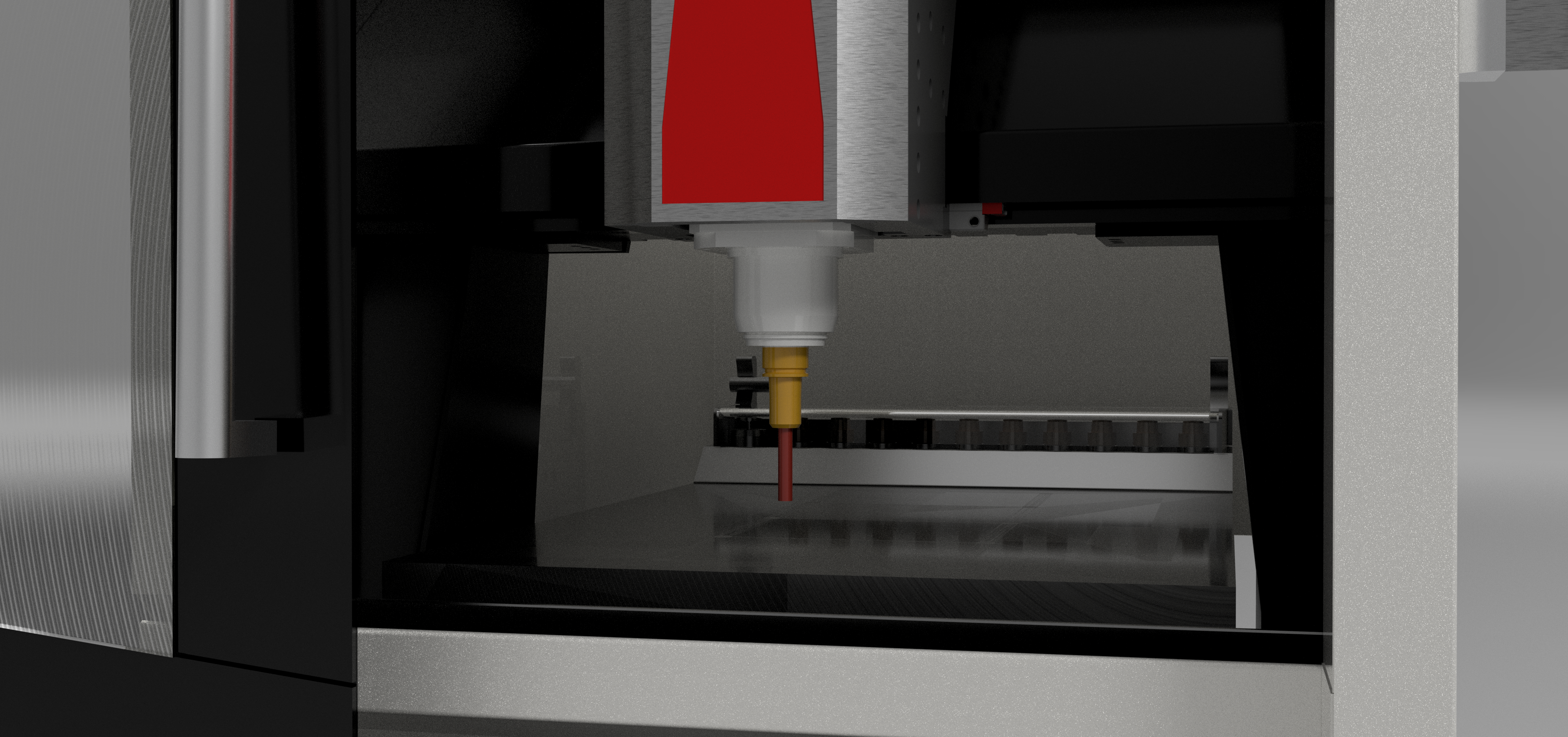

Spindle is the heart of the MINI IKON
PRECISE, FAST AND POWERFUL ROTATION.
Swiss Dynamics spindles are world leaders in precise, fast and powerful rotation.
We collaborate with international technology leaders, particularly in precision spindle construction. As a technology group, we develop and build high-tech products with significant added value for our customers.
We offer a varied range of spindles with a speed of up to 50000 rpm and a power of up to 3.4Kw
Controller and
Software
Accurate, Fast and Precise
Swiss Dynamics is powered by industrial Fanuc CNC controller.
High Precision: Fanuc CNC controllers are known for their exceptional precision and accuracy in controlling machine movements. This ensures that the final product meets the required specifications.
User-Friendly Interface: Fanuc CNC controllers have a user-friendly interface that allows operators to easily program and operate the machine. The interface is intuitive and provides clear instructions for setting up and running the machine.
Advanced Motion Control: Fanuc CNC controllers offer advanced motion control capabilities, allowing for precise and smooth movement of the machine. This ensures high-quality machining and reduces the risk of errors or defects.
Applications
Mechanical part
Material: Al 5083
Dimension: dia. 320 mm x 20 mm
Machining time: 53 min
Automation
Molds
Material: Al 5083
Dimension: 200 mm x 150 mm x 12 mm
Machining time: 45 min
Plastic Industry
Mechanical Gear
Material: Brass
Dimension: dia. 76 mm x 9.6 mm
Machining time: 34 min
Energy Industry
Electronic Case
Material: Al 5083
Dimension: 180 mm x 120 mm x 50 mm
Machining time: 51 min
Aerospace Industry
Automation
Collaborative Robots
Production series required automation
Flexibility and Versatility: Collaborative robots are highly flexible and can be easily programmed and reprogrammed to perform different machining tasks. This allows for quick changeovers and adaptability to different production requirements.
Reduced Labor Costs: By automating high-speed machining processes with cobots, manufacturers can reduce labor costs associated with manual machining operations. Cobots can work continuously without breaks or fatigue, leading to increased productivity and cost savings.
Easy Integration: Collaborative robots are designed to be easily integrated into existing machining setups. They can be programmed to communicate and synchronise with other machines and equipment, streamlining the overall production process.
Increased Production Speed: Cobots can operate at high speeds, allowing for faster machining cycles and increased production output. This is particularly beneficial for industries that require high-volume production.
Software & Controller
AI User Experince
A special experience
Highlight of software:
• Excellent interface with simple touch operation
• Easy part alignment using camera
• Display 3D Model of a program preview
• Manual Jog of the machine using touch monitor
• Automatic tool measurement
Highlight of controller:
• AICC 2 - 1024 lookahead instruction
High speed machining required for keep the speed and precision position in advance of a program
• Dynamic mode acceleration - 0.15G Fine / 0.4 Standard / 1 G Fast
• Fine surface option included
• Pitch compensation and straightness compensation
Service
All-round worry-free package for your new machine!
When it comes to servicing high-speed machining equipment, there are several key highlights to consider. Here are some of the highlights for servicing high-speed machining:
Regular Maintenance: High-speed machining equipment requires regular maintenance to ensure optimal performance and longevity. This includes routine inspections, cleaning, lubrication, and calibration of the machine components.
Specialised Training: Servicing high-speed machining equipment often requires specialised knowledge and training. Technicians should be well-versed in the specific requirements and intricacies of high-speed machining technology to effectively diagnose and address any issues that may arise.
Precision Calibration: High-speed machining equipment operates at extremely high speeds and tolerances. As such, precise calibration of the machine's components, such as spindles, tool holders, and linear guides, is crucial for maintaining accuracy and minimising vibration or tool deflection.
Monitoring and Diagnostics: Implementing monitoring and diagnostic systems can help identify potential issues before they lead to machine downtime or damage. This includes real-time monitoring of spindle speed, temperature, vibration, and other critical parameters to detect abnormalities and take proactive measures.
Collaboration with OEMs: High-speed machining equipment is often complex and may require collaboration with original equipment manufacturers (OEMs) for servicing and repairs. OEMs can provide technical support, access to spare parts, and specialised knowledge to ensure proper maintenance and operation of the equipment.
Download & Technical DATA
Downloads
Mini Ikon brochure (e-Paper /PDF)
