IX 1505

IKON 1500×500 mm is the most compact and economical high speed milling machine from Swiss Dynamics.

With its small foot-print, it is specifically designed for small working areas but it still offers the possibility to manufacture pieces of up to 1500×500 mm.

Max X travels

Max Y travels

Max Z travels

Max table load

500 mm

1500 mm

300 mm

225 kg

Highlights

IX Series

Small foot-print

Very robust and stiff structure

Compact configuration for small production spaces

High speed milling

Speed and precision in manufacturing

Up to 1G acceleration powered by FANUC

Linear scales on all standard Swiss Dynamics Milling Machines

Versatility

Two options for spindle – 42.000 rpm for high speed aluminum milling and 24.000 rpm for titanium milling

Full table vacuum system offered on all standard Swiss Dynamics Milling Machines

Option to fix the work piece with bolts and nuts

User friendly interface

21″ industrial touchscreen

Two software options – professional industrial FANUC software and easy to use customised software

Easy operation of the machine even for CNC operators with no experience

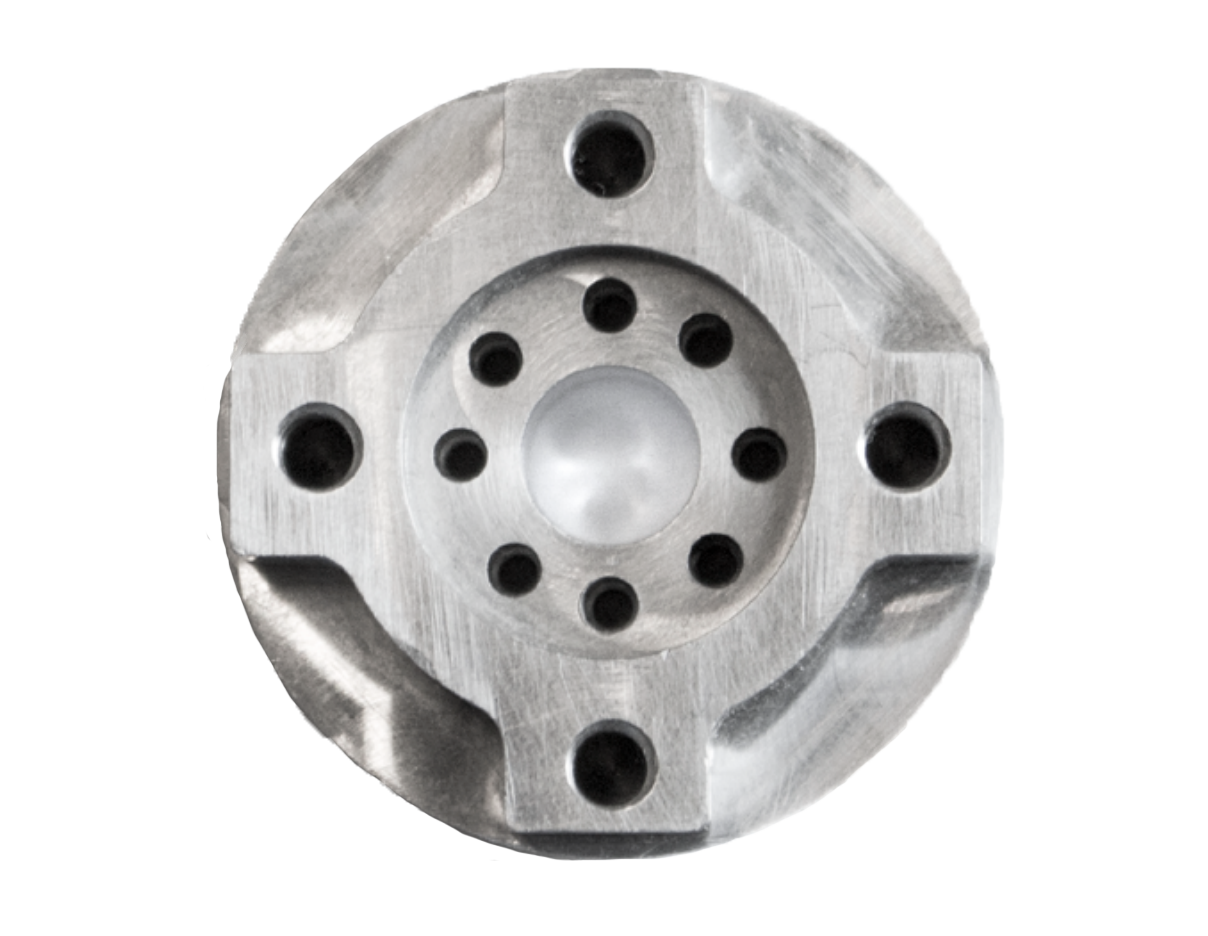

Application examples

Technical data

Downloads

IX Series (PDF download)

Work area

Max X travels

500 mm

Max Y travels

1,500 mm

Max Z travels

300 mm

Table dimensions

Max table load

225 kg

Table length

500 mm

Table width

1,500 mm

Spindle

Spindle Jäger – Made in Germany or HSD – Made in Italy

42,000 / 24.000 rpm

Tool type

HSK E32 / F63

Drive power rating

5,5 kW (100%), 8 kW (60%) / 10 KW (100%), 12 KW (60%)

Precision

Repeatability

1 um

Measurement system

Direct measurement system – linear scales

Rapid traverse

Max X axis

60 m/min

Max Y axis

60 m/min

Max Z axis

30 m/min

Tool magazine

Tool positions

24 pcs

Touch probe

Blum TX76 – touch part probe

0.4 um

Blum ZX Speed – touch tool probe

1 um
